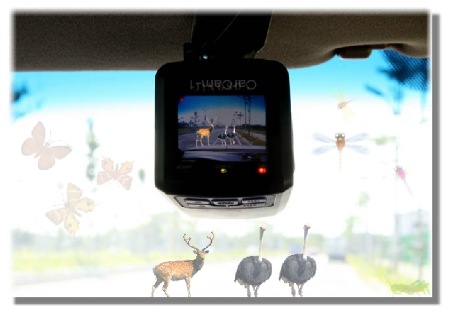

Driving with vehicle safeguard carcam-1, which assists lawyers and victims alike in making accident cases an exercise in simplicity.Easy to start recording by simply plug the power jack into the cigar-lighter.carcam-1 offers 2 recording modes that you can easily customize to suit your security needs -Full stop with “beep” warning sound -overwrite the earliest recording file while memory card is full Having no risk to loose the whole recording files because a separate video will be created as every about 15 minutes (200MB) segments Automatically saving max. 15 minutes of post-event video in an event of power failure. Use anywhere from a 1G to 32GB micro SD card to store the recordings.
Assures clearer, smooth and more fluent image transmission.Never miss the details with high resolution 720x480 pixels, and high frame rate of 30 frames per second. Activating the wide-angle CMOS camera to record the moments before and after a presumed incident.
A convenient onboard display allows all recording videos to be viewed or presented to the police or the culprit immediately.Instant replay, fast forward and rewind from built-in monitor. All recording videos will be stamped with time and date for evidence at a later date. The built-in microphone allows to record audio simultaneously.
The carcam-1 A/V Output function lets you show off scenic drive videos on a TV screen or other monitors with RCA jack supported.
The carcam-1 A/V input allows you to record from other external sources, such as car rearview camera or other audio/video remote-monitoring application. *carcam-1 supports only 1 channel Recording at a time.
With optional battery pack, carcam-1 can be used in almost unlimited number of situations, like an electronic vigil of your house to help catch criminals, remote monitoring, spy, car/motorcycle racing, helicopter, buses, wildlife filming, bike, adventure, etc.
Specification
Camera: 1/4” Digital color CMOS 2.0 Mega Pixel camera, the illumination is about 0.1 ~ 0.5/lux-sec, 82 degree diagonal, 63 degree horizontal, 44 degree vertical field of view.
Recording mode: Continuous Recording ( Overwrite the oldest file when memory is full ) Full Stop ( Stop when the memory is full ) Video Recording format Codec: MPEG-4 Format: MP4 Resolution: 720x480 Pixels Audio : AAC Frame Rate: upgraded 30fps * A new recording file is created if the file size is about 200MB or the recording time is up to 15 minutes. Support memory card: Micro-SD (up to 32GB) Video Output: Analog AV-OUT composite RCA jack Resolution : 640x480 Pixels Stereo earphone jack NTSC & PAL Digit display indicator: Auto detect recording display : obverse or upside- down Approximate recording time: Capacity of micro SD card approximately Recording hours 8G 10~12 hrs 16G 20~24 hrs 32G 40~48 hrs *A colored and very large objects against ordinary backgrounds will take more memory, so, it is possible that the recording time will be shorter. USB Interface: USB2.0 device LED indicator: Power ( Green) REC ( Red ) Error ( Red ) with beep warning sound Power Supplier: 5V Car Charger 5V/2A DC IN, 100-240V auto switched (Optional) Built-in rechargeable 400mAH Lithium polymer battery for power failure Dimensions: 70 x 60 x 60 mm (L x W x H) Display: 2.0" TFT LCD (320x240) Built–in speaker: Mono Speaker (1W) Built-in microphone: YES Keypad: Up, Down, Enter/stop, MENU, Track, total 5 keys Video Input: Analog AV-IN composite RCA jack Video Playback: Quick forward, backward and pause function Video Recorder: Time information on OSD is embedded in video frames File System FAT 12 / 16 / 32
