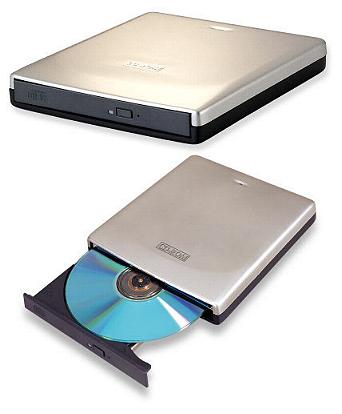

Slim CD-ROM
drive :
PCMCIA/USB1.1/USB2.0/1394
via switching
cables |
|
model : ITC-cdrom
(TEAC or Lite On)
|
32X
CD-ROM
Speed：32X CD-ROM
Interface：ATAPI
Data Buffer：128KB
Dimensions：128W X 12.7H X 129.4D ( mm )
Weight：430g
Packing List
1. External Slim CD-ROM Drive
2. PCMCIA to ATAPI Interface Cable
3. Software drivers
4. Support DOS, OS/2, Windows 3.1 / 95 / 98 / 98SE / ME / NT
/ 2000 / XP
|
|
|
|
SPECIFICATIONS
|
Disk Type
|
CD-DA, CD-TEXT
CD-ROM(MODE-1,MODE-2)
CD-ROM XA MODE-2(FORM-1,FORM-2)
Multi-session PhotoCDTM
CD-I,Video-CD,Enhanced & CD PLUS Compatible
|
|
Disk Diameter
|
12cm,8cm
|
|
Disk Rotation Speed
|
6,849rpm typ (FULL-CAV)
|
|
Interface
|
ATAPI
|
|
Data Transfer Rate:Sustained
|
2,070KB/sec.(13.8x) - 4,800KB/sec.(32x) (FULL-CAV)
|
|
Data Transfer Rate:Burst
|
33.3 MB/sec.Max
( Ultra DMA )
16.7MB/sec.Max (
PIO MODE 4,MW DMA MODE2 )
|
|
Random Access Time
|
110m sec.average
|
|
Data Buffer
|
128KB
|
|
Loading Mechanism
|
Drawer
|
|
Ambient Temperature
|
Operating:5 - 51.7oC
Non-Operating:-20 - 60oC
|
|
Power Requirements
|
DC+5V +5% -5%
20mA typ. (standby mode)
600mA typ. (sequential read)
|
|
MTBF
|
60,000POH or more(10% Duty)
|
|
Safety Standard
|
Approved by UL,CSA,TUV
|
|
Dimensions
|
128W X 12.7H X 130D (mm)
|
|
Weight
|
250g
or less
|
|
|
Slim DVD-ROM drive
:
PCMCIA/USB1.1/USB2.0/1394
via switching cables
model : ITC-dvdrom
8X
DVD-ROM
Speed：8X DVD-ROM , 24X CD-ROM
Interface：ATAPI, ATA - 4
Data Buffer：512KB
Dimensions：135.0W X 21.0H X 162.0D ( mm )
Weight：405g
Packing List
1. External Slim DVD-ROM Drive
2. 1394 to ATAPI Interface Cable
3. Software drivers
4. DVD play software
5. Switching power adapter
6. Supports Windows 98SE/ME/2000/XP |
|
|
|
SPECIFICATIONS
|
Disk Type
|
DVD-ROM,DVD-Video
CD-DA
CD-ROM ( MODE-1,MODE-2 )
CD-ROM XA MODE-2 ( FORM-1,FORM-2 )
Photo CDTM ( Multi & Single Session )
CD-I,Video CD & CD Extra ( CD PLUS )
CD-R, CD-RW, CD-TEXT
|
|
Disc Diameter
|
12cm,8cm ( DVD & CD )
|
|
Disc Rotation Speed
|
[DVD Mode] 4,594rpm typ. ( FULL-CAV )
[ CD Mode ] 5,136rpm typ. ( FULL-CAV )
|
|
Interface
|
ATAPI,ATA-4
|
|
Data transfer Rate
Sustained
|
[DVD Mode] 4,469 - 10,816kB/sec. ( FULL-CAV
)
[ CD Mode ] 1,545 - 3,600kB/sec. ( FULL-CAV,MODE1 )
|
|
Data transfer Rate
Burst
|
16.7MB/sec. ( PIO mode 4
/ Multi Word DMA mode 2 )
33.3MB/sec. ( Ultra DMA )
|
|
Random Access Time
|
[DVD Mode] 130msec. typ. ( average )
[ CD Mode ] 95msec. typ. ( average )
|
|
Data Buffer
|
512KB
|
|
Loading Mechanism
|
Drawer
|
|
Ambient Temperature
|
Operating : 5 - 55oC
Non-Operating : -20 - 60oC
|
|
Relative Humidity
|
Operating : 8 - 80% ( non-condensing )
Non-operating : 5 - 95% ( non-condensing )
|
|
Power Requirements
|
DC+5V ±5%
|
|
Power Consumption
|
30mA typ. ( standby mode
)
1.2A typ. ( seeking/spinning up )
800mA typ. ( sequential read )
|
|
MTBF
|
60,000POH ( 10% duty )
|
|
Safety Standard
|
Approved by UL,CSA,TUV
|
|
Dimensions
|
128W X 12.7H X 129.4D ( mm )
|
|
Weight
|
235g or less
|
|
|
|
