Bluetooth Headset

Feature

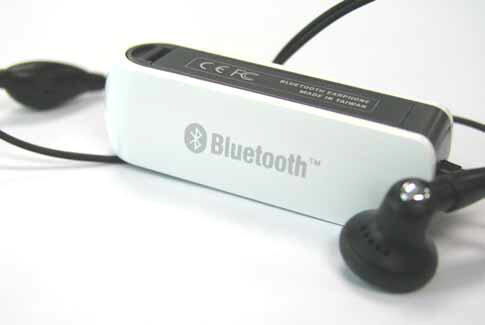

ITD-BTheadset is a portable Bluetooth wireless headset. It provides a fully compliant system for voice communications. It only weighs 12 grams and is designed for use on either ear. Most of all, this Bluetooth headset can support your talk time up to 6 hours. Support Headset and Hands-Free two profiles.

Base Specification

General

Hardware Type

Class 2

Bluetooth Spec.

Ver. 1.2

Throughput

723 K bps (Data channels)

Supply Voltage

1 AAA/1.5V

Operating Distance

10M

Regulatory Approval

CE,FCC,BQB

Talk Time

Over 4hours

Standby Time

Over 80hours

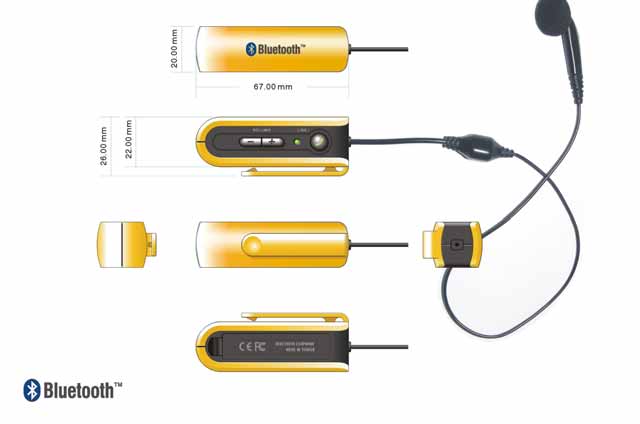

Dimensions

67mmX 20mmX26mm

Weight

22g(No Battery)

Environment Operation Ranges

Storage temperature: -: -30�J ~ 80�J

Humidity: 10% ~ 90% RH 30�XC ~ 70�XC RH

Operating temperature: Temperature: 0�J ~ +65�J

Humidity: 10% ~ 85% RH`

Color

Black/white/red/yellow

Profile

Headset and Hands-free profile

�@

Electrical Specification

Bluetooth

ISSC solution

General Ratio

Carrier Frequency 2.4~2.483GHz (2.4GHz ISM Band)

Ratio Performance Receiver

Data Rate 1Mbps Rx sensitivity -80dBm

Ratio Performance Transmitter Output

Transmitter Output Power at Antenna Port 2dBm

Link Mode

ACL/SCO

Maximum user data rate

723Kbps/ACL, 64K bps/SCO

�@

Application

Profile Support

Headset Profile

Hands-free Profile

Main Functions

Calls: Answer, Dial, Reject, Terminate a call

Dialing: Voice Dialing, Last Number Redial

Volume Control, Mute

LED Indicator Status

Blue: Power on mode

Red: Low power and off the headset

Blue & Red: Pairing mode

�@

Environmental Standards

Operating Temperature

Temperature: -10 ~ +55�J�J

Humidity: 10% ~ 85% RH

Storage Temperature and Humidity

Temperature: -20 ~ 60�J�J

Humidity: 10% ~ 90% RH

Weight: 14 grams

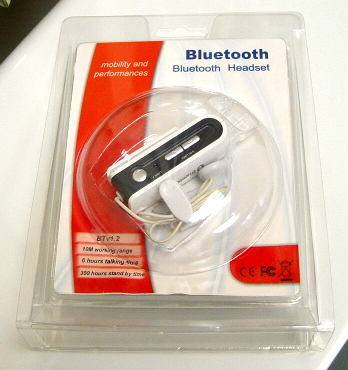

Retail packing: Device, Battery, User manual & quick guide with hard copy

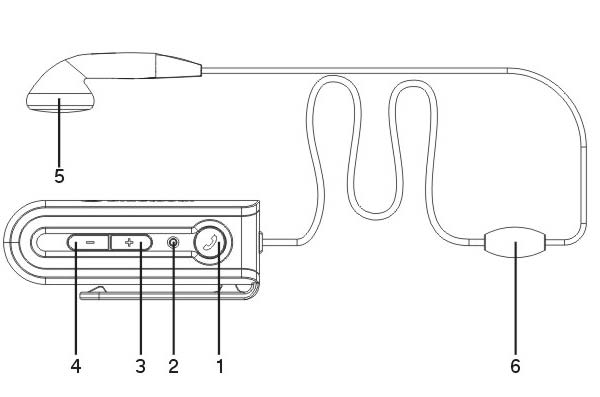

Button Interface

Hands-free Profile

System Mode

Main Button

Volum +

Volum -

Off

Press 3sec : Power on

No function

Press 6sec : Pairing mode

Idle(not paired)

Press 3sec : Power off

No function

Standby (Paired)

Short (<1 sec):Initiate Voice Dial

Short (<1 sec): Volume Up

Short (<1 sec): Volume Down

(No Talk)

Press 2sec : Last Number Redial

Setting Up Voice Dial

Short (<1 sec):Cancel Voice Dial

No function

Incoming Call

Short (<1 sec):Answer (Receive a call)

Short (<1 sec): Volume Up

Short (<1 sec): Volume Down

(Ringing)

Press 2sec:Reject a call

Outgoing Call

Short (<1 sec):End a Call

Short (<1 sec): Volume Up

Short (<1 sec): Volume Down

(Ringing)

Press 2sec:Reject a call

Call Active

Short (<1 sec):End a Call

Short (<1 sec)Vol+ plus Vol- :Transfer to phone

(Audio In Hs)

Press 2sec:Switch to second call

Press 2secVol+ plus Vol- :Mic Mute

Handset Profile

System Mode

Main Button

Volum +

Volum -

Standby (Paired)

Short (<1 sec):Initiate Voice Dial

Short (<1 sec): Volume Up

Short (<1 sec): Volume Down

(No Talk)

Call Active

Short (<1 sec):End a Call

Short (<1 sec)Vol+ plus Vol- :Transfer to phone

(Audio In Hs)

Press 2sec:Switch to second call

Press 2secVol+ plus Vol- :Mic Mute
