*Direct Copy from any
USB devices |
| Connects directly
to your USB devices without a need of a PC |
| One-touch
single-button easy copy operation |
|

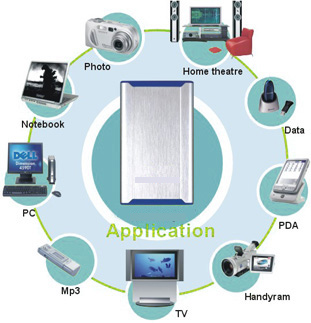

Supports common USB devices with a USB port,digital,
cameras,MP3 players, Digital camcorder,flash drives
etc. |
| |
| *Multimedia
Playback on TV |
| Playback directly
on any TV using supplied remote control. |
| Supports DIVX ,
MPEG4 , XVID , DVD , VCD , SVCD MP3 , JPEG
multimedia file formats |
| Photo viewer &
Photo Slide show Connects to your home theatre
system for surround sound digital effects. |
| |
| *Easy
to install and use |
| Plug and Play |
| No
dedicated computer needed for copy operations |
|
Hot-swappable local data storage/ Supplied with a
Remote control |
| |
|
Systems Requirements |
|
WINDOWS� 98SE/ 2000 / XP |
|
233MHZ Pentium� II or higher |
|
128MB RAM |
|
USB1.1 Port (USB 2.0 recommended) |
| |
|
Internal Hard Disk Drive |
|
HDD type :
2.5Inch |
|
Drive Capacity :
20GB,40GB,60GB,80GB |
|
Ethernet Interface: Data transfer of up to 100MB/sec |
|
USB 2.0 Interface :
Data
transfer of up to 480MB/sec |
| |
40GB |
60GB |
80GB |
|
Images |
40,000 |
50,000 |
80,000 |
|
Music |
10,000 |
15,000 |
20,000 |
|
Video |
250 |
375 |
500 |
|
| |
|
|
|
Video Format
support:PAL/NTSC |
|
File format
Support:
CD-DA/HDCD/VCD(1.1/2.0/3.0)/SVCD/DVD/MPEG/MPEG4/MP3/JPEG/DIVX(3.0/4.0/5.0) |
|
|
Video Out Resolution:
≧
500 lines |
|
Video Signal
to noise ratio:
≧
56 dB |
|
Frequency
response:
20Hz-20KHz �1dB |
|
Dynamic range:
≧
90dB |
|
Audio Signal
to noise ratio:
≧
90dB |
|
Signal loss
ratio:
< 0.01% |
|
Audio D/A:
192KHz/24bit |
|
Video output:
1Vp-p (75Ω) |
|
Audio output:
2.0+0.0V -1.0V |
|
Power supply:
AC 100-240V 50/60Hz |
|
Power
consumption:
5W |
|
Size:
131*80*19mm |
|
Weight:
215g |
|
|
Remark:
Not support the DIVX file which the video
resolution over 720x576 for PAL and 720x480
for NTSC and PCM audio format. |
| |
|
Optional |
|
Car Adaptor |
5.1 Channel
Support |
|
