Product Features:

*Solution for making storage device connection easier.
*Supports most types of ATA/ATAPI /SATA interface devices such as 2.5� HDD, 3.5� HDD and CD-ROM, CD R/W, DVD ROM and DVD R/W devices.
*Supports USB and E-SATA dual host interfaces.
*Provides a power switch for connecting your device safely.
*Plug and Play, no jumper pin or ID settings required.
*Supports Windows and Mac system.





available on end of April 2006



view catalogue

Bridge

USB to IDE

E-SATA to SATA

Interface to PC:

USB 2.0



E-SATA



Interface to device:

- IDE 40-pin connector

- 4-pin power connector

- SATA 7+15pins connector (with power)

- SATA 15-pin

Application:

 Hard Drive (2.5�/3.5�), CD-ROM, CD/RW, DVD-ROM, and DVD-   RW etc.

Hard Drive (2.5�/3.5�) and other SATA

devices

Connectors

- One Mini USB 5-pin

- One 4-pin power connector

- One E-SATA connector (with power connector)

Indicator:

- One DC jack (DC12 Volt input; 2.5φplug) for external power adapter

- Power switch

- One power on LED

Power source:

AC input: 100-240VAC, auto-ranging. DC output: 12V/5A/2.5φ

Unit dimension:      67.6(L)*110 (W)* 24.5 (H) mm
Unit weight: 90g
OS supports:

Windows 98SE/ ME/ 2000/ XP

Mac 10.X or higher

Storage temperature:

-20C~60C

Operating temperature:

5C~50C

Certificated: FCCCE

Package Content:

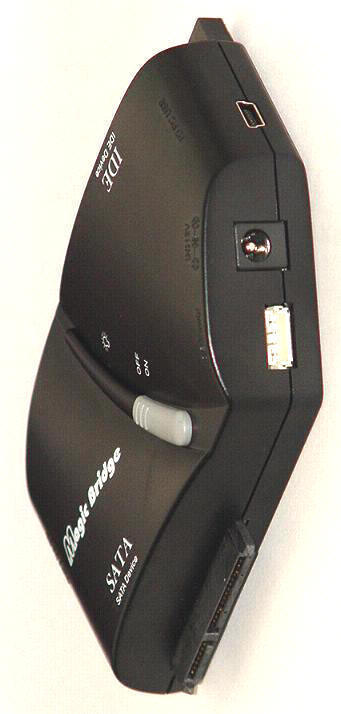

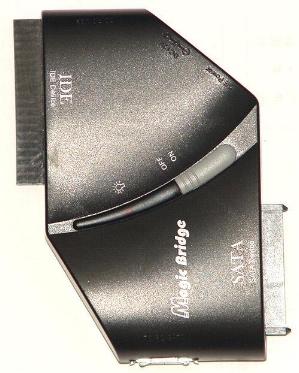

Magic Bridge

Power adapter (DC 12V/2A) and power cord

USB cable (type A to Mini USB), 100cm

E-SATA cable (E-SATA to E-SATA), 100cm

IDE 4-pin power cord (5V: red wire; 12V: yellow wire)

User manual

Power adapter (DC / 12V / 5A) (option)

Mini IDE converter (option)
