Key Features: |
|
Quickly and easily connect any IDE
device anywhere.
|
|
Supports most types of ATA/ATAPI
interface devices.
|
|
Compatible with USB 2.0 and USB 1.1
standards.
|
|
High speed data transfer rates up to
480Mbps.
|
|
Support power On/Off switch.
|
|
Plug and play, no jumper pin or ID
settings required.
|
|
Support Windows and Mac system.
|
|
Specifications: |
|
Interface: |
USB1.1 and USB2.0 to 40-Pins ATA/ATAPI |
|
Transfer Speed: |
Full-speed 12Mbps and high-speed
480Mbps. |
|

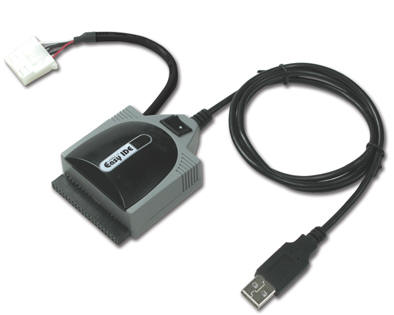

Connectors: |
One 1M USB A-type cable.
One 1.3� self-powered DC-jack.
One 4-P power cable for standard HDD/CD-ROM�s
power connector. |
|
Indicators: |
One red powered LED and one green active
LED. |
|
Power source: |
External power adapter (DC12V/1.5A) |
|
Operating temperature: |
5� C~40 � C |
|
Stock temperature: |
-20� C~60� C |
|
Humidity: |
0%~80% RH, non-condensing |
|
Unit Dimension: |
66(L)*55 (W)* 22 (H) *28(H of arc) mm |
|
PCB layer: |
4 layers |
|
Certifications: |
FCC Class B, CE |
|
Applications: |
|

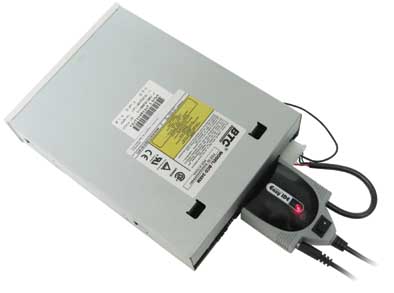

ATA/ATAPI interface drives such as 3.5"、5.25"HDD
and IDE CD-ROM、CD
R/W、DVD
ROM devices. (2.5"HDD need an 40-pin to 44-pin converter) |
|
Packages:
|
|
1 Switching power adapter
|
|
2 Easy IDE adapter
|
|
3 Driver disc with manual
|
|
OS. Supports: |
|
Windows 98, ME, 2000, XP.
|
|
Mac OS.8.6 or higher.
|
