Product Features:

��   Solution for making storage device connection easier.

l         Supports most types of ATA/ATAPI /SATA interface devices such as 2.5�� HDD, 3.5�� HDD and CD-ROM, CD R/W, DVD ROM and DVD R/W devices.

l         Supports USB to IDE and SATA / E-SATA to SATA interfaces.

l         Provides a power switch for connecting your device safely.

l         Plug and Play, no jumper pin or ID settings required.

l         Supports Windows and Mac system.

Product specification:

Bridge�G

USB to IDE

�@

USB to SATA

�@

Interface to PC:

USB 2.0

�@

Interface to device:

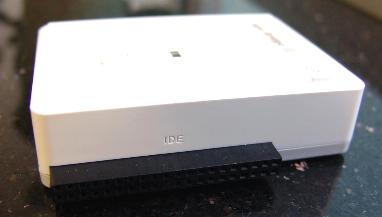

- IDE 40-pin connector

- 4-pin power connector

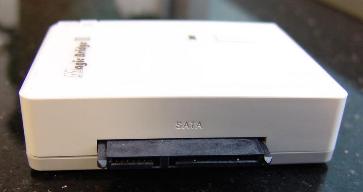

- SATA 7+15pins connector (with power)

- SATA 15-pin

Application:

Hard Drive (2.5��/3.5��), CD ROM, CD/RW, DVD ROM, and DVD/RW etc.

Hard Drive (2.5��/3.5��) and other SATA devices

Connectors:

- One Mini USB 5-pin to PC.

- One 4-pin power connector for IDE device

�@

- One Mini USB 5-pin to PC.

- One 15-pin SATA device

Indicator:

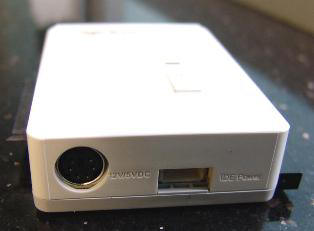

- One DC jack (DC12 Volt input; 2.5�pplug) for external power adapter

- Power switch

One power on LED

Power adapter:

AC input: 100-240VAC, auto-ranging.

DC output: 12V/2A,5V/2A (6Pin Mini Din)

Power source:

12V / 2A ,5V / 2A

Unit dimension:

67.6(L)*110 (W)* 24.5 (H) mm

Unit weight:

90g

OS supports:

Windows: Windows 2000/ XP

Macintosh: Mac 10.X or higher

Storage temperature:

-20�XC~60�XC

Operating temperature:

5�XC~50�XC

Certificated:

FCC�BCE/RoHS

Package Content:

l         Magic Bridge II

l         Power adapter (DC 12V, 5V/2A) and power cord

l         USB cable (type A to Mini USB)

l         40-44 pin IDE adapter

l         IDE 4-pin power cord

l         User manual

l         Mini IDE converter
