X- Rev
3.5" USB / SATA Combo Enclosure
(with
multi-Card Reader and HUB function)
The x-Rev 3.5�
external HDD enclosure supports USB2.0 2-port HUB and all in one
card reader on one device. It�s also an excellent idea for 3.5� SATA Hard drive, you can get a huge space up to 500GB to store
large graphics files, digital photos, MP3 files or any important
documents in this external disk.
The x-Rev external
HDD enclosure has an optimum design for good performance of heat
sink with high quality material. The application can extend the
life of your PC for longer.
|
Key
Features:
|
-
1. 3 + 1 in 1 : HDD enclosure + Card Reader + Hub
-
-
Idea for 3.5� SATA hard drive up to 500G.
- 4
slots all in one card reader access with multi
memory cards without card adapter, such as
- xD / SD / Mini SD / MS
Duo-Pro Duo / MMC / RS MMC / CF (Type I / II) /
Micro Drive
- 2
x USB2.0 ports.
-
One button backup function.
-
Optimum multi-function design to be the best storage
solution for your PC.
-
- 2. Design for
good performance of heat sink with high quality
material.
- 3. Easy DIY,
simply to install and save space.
- 4. Free to
stand and lie down while operating.
|
|
|
|
|
Specification:
|
|
Interface to PC: |
USB2.0 /
ESATA
|
|
Interface
to device: |
SATA
|
|
Outlet:
|
I/O port:
2 Ports USB2.0 Extension Hub
4 Card
reader slots (adapter-less)

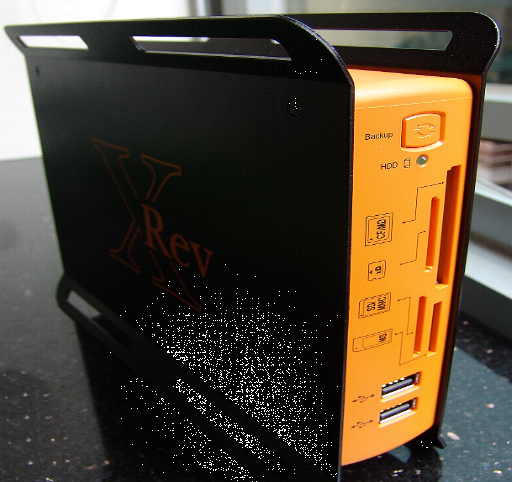

front:
Power switch
Backup key
back: DC
Jack
USB port
SATA
Fan (optional)
|
|
HDD
supports: |
Up to
500GB 3.5�SATA HDD
|
|
Memory
cards supports: |
SD, Mini
SD, MMC, RS MMC
MS, MS
DUO, MS PRO, MS PRO DUO
XD
CF (type I
& II)
Micro
Drive (adapter free) |
|
Data
transfer rate: |
USB2.0:
480Mb/sec
SATA: Up
to 300 MB/sec |
|
Indicators: |
Power on /
HDD access
Card
reader active |
|
External
AC adapter: |
12V / 2A,
5V / 2A |
|
OS
supports: |
Windows:
Windows 2000/ sever 2003 Windows XP
Macintosh:
Mac 8.6, 9.X, 10.X or higher
Linux:
Kernel 2.4.x or later |
|
Certification: |
FCC、CE
|
 |
