officeSATA - Smart USB
Storage (for 2.5 inch
SATA
HDD Enclosure)
�@
Software Specification :
One‐Touch
One‐Touch
sync
One‐Touch
play
One‐Touch
backup
One‐Touch
copy Hub data
�@
PC Sync
Outlook Express/Windows Mail:Emails
MS
Outlook:Emails
and Messages in Personal Folder
Media Player:Media Files with Play list
Address Book/Windows Contacts
IE:My Favorites
My
Documents Folder
My
Working Folder
�@
Mobile Office
Outlook Express/Windows Mail
MS Outlook
Media Player
Address Book/Windows Contacts
IE:My Favorites
My Documents Folder
My Working Folder
�@
Secured Private
Disk
128‐bits
encryption
User name/password
�@
Auto run
Virtual CDROM
Auto Play Built‐in
Smart Utility
�@
Easy Setup without Screws
Multilingual GUI
−
English
−
German
−
Traditional Chinese
−
Simple Chinese
−
Greek
−
Dutch
−
Russian
−
Danish
−
Portuguese
�@
Operating System
Windows 2000(ServerPack4)
Windows XP
Windows Server2003
Windows Vista
�@
Hardware specification :

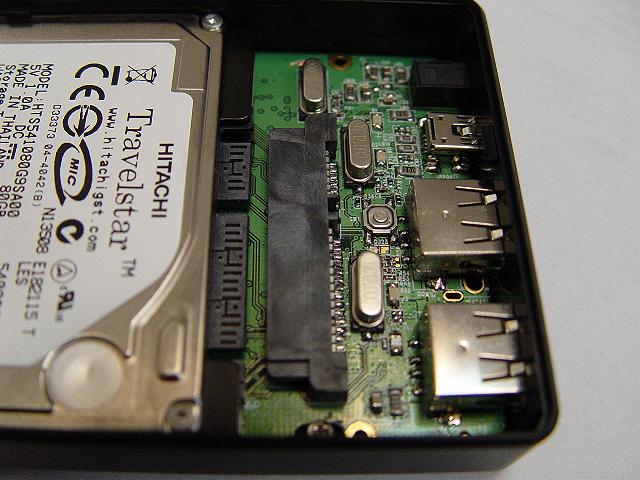

Support 2.5 inch SATA HDD / Internal 256MBytes SLC Flash
Windows Vista Ready Boost
Builit‐in
autoUSB Utility
�@
One Touch Button

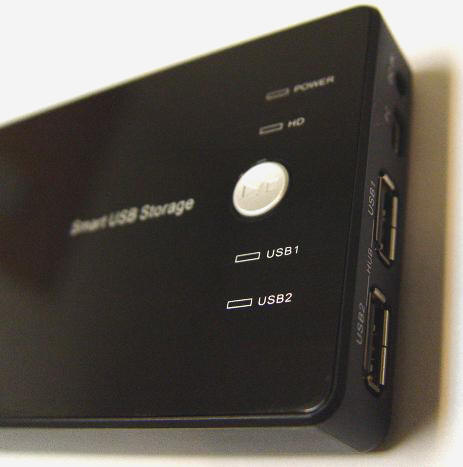

Diagnostic LEDs
Power
HDD Status
Hub1 Status
Hub2 Status
�@
2

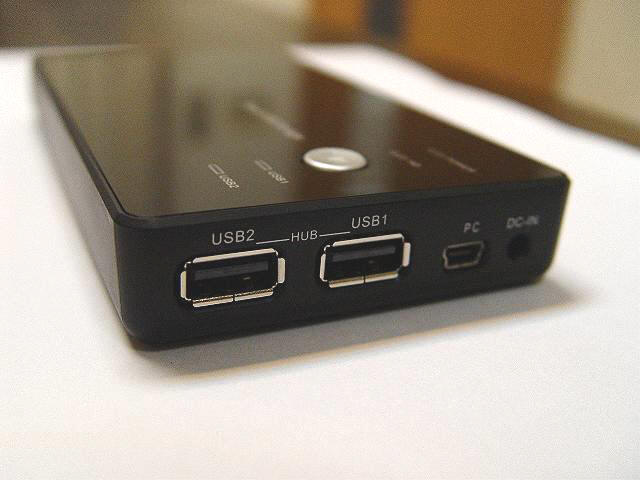

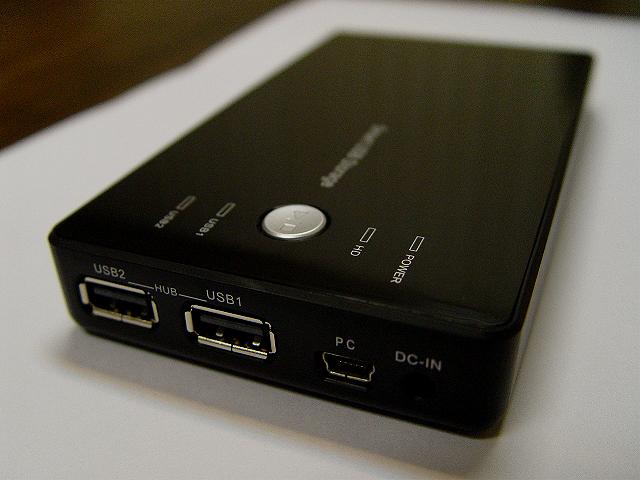

USB2.0 Hub Ports :
back up HUB files into HDD directly
Hub1
Hub2
�@
DC
In Jack
5V/2A
Dimensions (WxHxD)
140x74.5x19.5(mm)
Operation Temperature
0~55oC
Storage Temperature
‐10~70oC
Humidity
-10%~95%RH,nocondensation
Certification
FCC
CE
RoHs
�@
officeSATA Utility
�@
Functions
|
-Mobile Office: You can carry PC
applications anywhere: My Documents, Internet Explorer,
Outlook Express/Windows Mail, MS Outlook, Address
Book/Windows Contacts, Media Player and personal Working
Folder. |
|
-PC Sync Tools: You can synchronize
emails, media files, address book and the data stored in
Mobile Office between PC and officeSATA Storage.
|
|
-Secured Private Disk: You can create
your private disk with Username/Password protection.
|
|
-Backup: You can back up your files in
officeSATA Storage. |
|
-System Setting: You can set up Language,
button task, private disk management and maintenance. |
|
-Exit and Safely Remove Hardware: you can
exit the utility and safe to remove the storage
simultaneously.
Function compared with other
|
Features |
officeSATA |
QXXXX-25 |
|
Hardware Specs |
Internal 256MB
NAND Flash |
o |
�� |
|
USB Hub |
o |
�� |
|
One Touch Button |
o |
o |
|
Vista ReadyBoost
|
o |
�� |
|
No Screw |
o |
�� |
|
System |
autoRun |
o |
�� |
|
System Recovery |
o |
�� |
|
Upgradeable |
o |
o |
|
Backup |
One-Touch |
o |
o |
|
Instant |
o |
o |
|
Schedule |
o |
o |
|
automatic |
�� |
o |
|
Incremental
|
�� |
o |
|
QFilter |
�� |
o |
|
Email Sync |
Outlook |
o |
�� |
|
Outlook Express |
o |
�� |
|
Windows Mail |
o |
�� |
|
Data
Sync |
Address Book |
o |
�� |
|
Windows Contacts |
o |
�� |
|
My Documents |
o |
�� |
|
IE Favorites |
o |
�� |
|
Media Files |
o |
�� |
|
Working Folder |
o |
�� |
|
�@
Mobile Office (Applications) |
My Documents |
o |
�� |
|
IE Favorites |
o |
�� |
|
Outlook |
o |
�� |
|
Outlook Express |
o |
�� |
|
Windows Mail |
o |
�� |
|
Working Folder |
o |
�� |
|
Media Player |
o |
�� |
|
Address book |
o |
�� |
|
Windows Contacts |
o |
�� |
|
Secured HDD |
Encryption |
o |
o |
|
UserName/password |
o |
o |
|
One
Touch |
Backup |
o |
o |
|
Sync |
o |
�� |
|
Play |
o |
�� |
|
OTG (Virtual) |
o |
�� |
�@ |
�@
System Requirements
-Pentium III equivalent processor or higher
-Windows 2000 (Server Pack 4) / XP/Windows Server 2003/Windows
Vista
-128 MB RAM or more as required by Windows
-Internet (for system upgrade)
�@

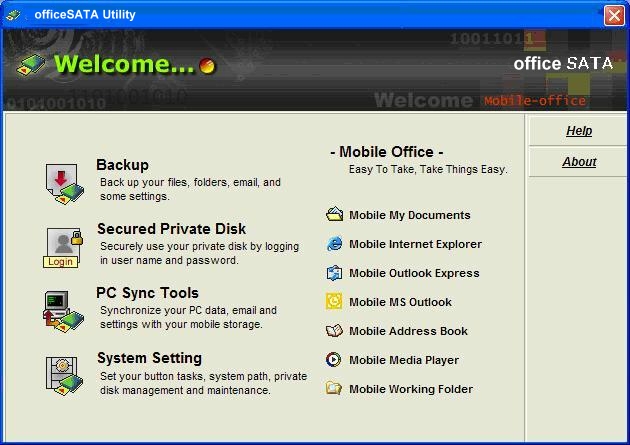

Main Screen on Windows 2000 SP4/XP/Server 2003:

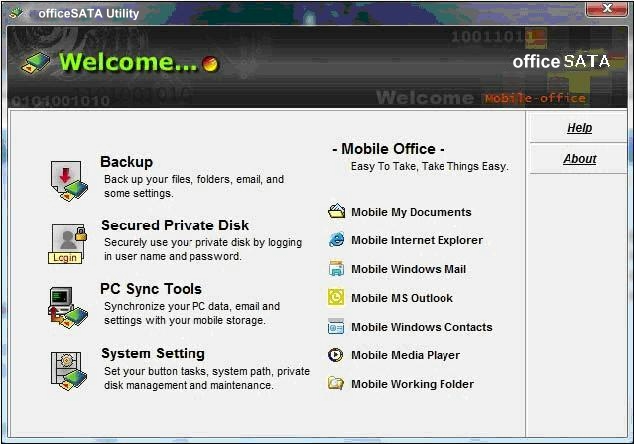

Main Screen on Windows Vista:
|
|
