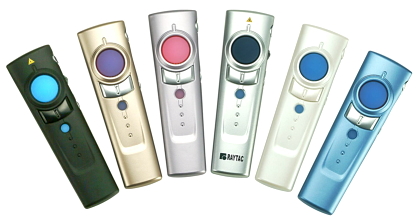

3-In-1

Omni-Directional Wireless Presenter

model : ITR-presenter3



What�s the benefits

Making your presentation easier and more successful
With Our 3-in-1 Omni-Directional Wireless Presenter, you don�t need to stand beside your notebook computer or have an additional person to assist you, nor do you need to aim at the receiver of the remote control. This Wireless Presenter provides you with a single tool to manage your presentations.

Multi-function Design
 Our 3-in-1 Omni-Directional Wireless Presenter combines the features of the presentation controls, wireless mouse and laser pointer into one ergonomic device. Excellent 2.4GHz RF technology enables you to control the computer mouse cursor up to 100 feet (30 meters) away from the receiver (connected to the USB port), the laser pointer functions up to 130 feet (40 meters) from the target.

Easy to use
Our 3-in-1 Omni-Directional Wireless Presenter is a USB plug-and-play device with no additional software required. The laser beam safety switch provides protection against unintentional laser beam into human eyes.

　

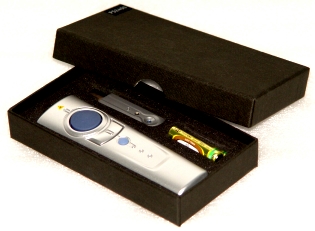

Equipment Checklist

Carefully unpack your 3-in-1 Wireless Presenter, and keep the packing materials for future reference. Check to make sure you have all the following items:

3-in-1 Omni-Directional Wireless Presenter 1

USB Receiver 1

AAA batteries 2

User�s Manual 1

System Requirement

The followings are the basic system requirements:

Operating systems

WindowsR 98 SE, Me, 2000, XP

MacR OS 9.1, MacR OS X (10.1) or later

One available USB port for connecting the USB receiver dongle.

　

Getting Started

Inserting the battery

 Open the battery cover and insert two AAA batteries.

          Notes on batteries:
  • Be sure that the polarity of the batteries is set properly.
  • Do not charge, heat, open, or short-circuit the batteries.
  • Do not leave dead or exhausted battery in the presenter.
  • If you do not intend to use this unit for a long period of time, it is advisable to remove the batteries.
  • If the wireless presenter does not function correctly or if the operating range becomes reduced, try to replace the battery with new ones.
  • Do not use different type of batteries together, or mix old and new batteries.
    •

    Connecting the RF receiver

    Connect the receiver to your notebook computer by plugging it into an available USB port. If all your USB ports are occupied, you can also plug it into a connected USB hub.

    Do as follows, depending on your operating system:

    WindowsR 98 SE/Me

    The system prompts you to insert the operating system CD-ROM. Follow the instructions on the screen to install the required drivers.

    WindowsR 2000/XP

    The operating system identifies the receiver as a �USB Human Interface Device� and begins installation automatically. Follow the instructions or messages on the screen to complete the installation.

    MacR OS

    The receiver is automatically detected and enabled.

    Activate the Laser
         Press and hold both Fn and On/Off key on the right side for two seconds to activate the laser. (the mode indicator flashes)

    If you have several RF devices within range and working at the same channel, the presenter is jammed evidently, you need to change RF ID for better communication quality. Please do as follows:　

  • Press the ID link button on the receiver and the LED lights up steady. This means the receiver is ready for linking.
  • Press the Fn and Link keys on the Presenter simultaneously for more than three seconds. The LED on the receiver begins blinking to confirm a successful link.

    • Note: Whenever you change the batteries, we recommend you to implement the procedure given above.

    Now, your 3-in-1 Wireless Presenter is ready to go.

    　

    Using the 3-in-1 Wireless Presenter

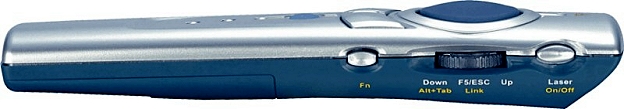

    There are two color words on the right side of the 3-in-1 Wireless Presenter:

    1.White for normal mode
    2.Yellow for function mode

    Note: The Fn key does not function except when used simultaneously with another key.

    Normal Mode: Function of each key when not used with the Fn key

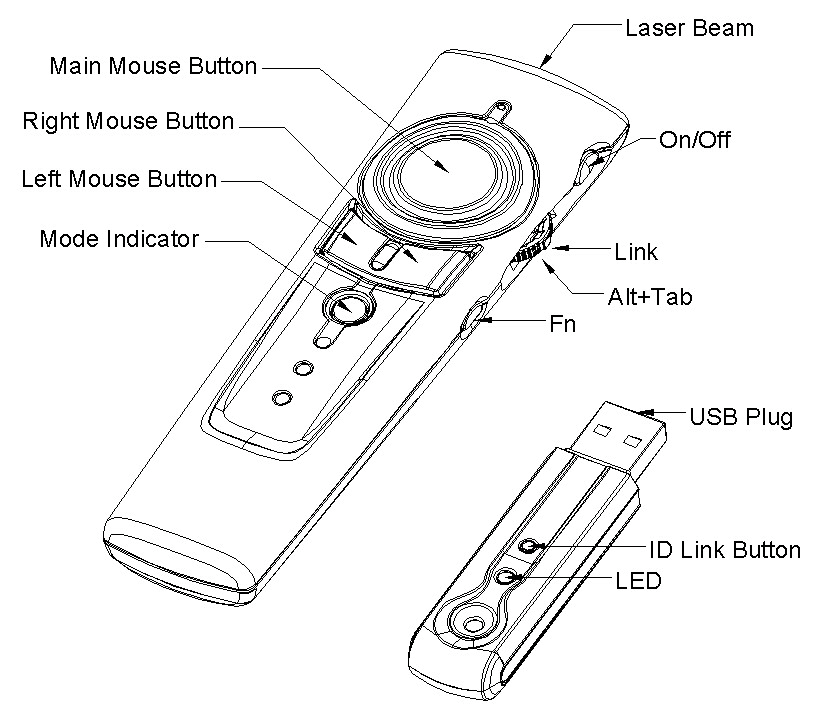

    Figure 1


    The function of each key is described below.

    Keys

    Function description

    Laser

    		 Press Fn + On/Off together to activate the laser function first, and then press Laser key to shoot the laser beam.

    Up

    Push up the switch and go back to the previous slide.

    F5/ESC

    Click to start the slide show.
    (similar to pressing F5 in PowerPoint)

    Press and hold more than three seconds to exit the slide show.
    (similar to pressing Esc in PowerPoint)

    Down

    Pull down the switch and go to the next slide.

    Function Mode

    Function of each key when used simultaneously with the Fn key, and the Fn key
    should be pressed before clicking the other key.

    Figure 2

    Keys

    Function description

    Fn + On/Off

    Press and hold both Fn and On/Off for two seconds to activate the laser.
    (the mode indicator flashes)

    Press and hold again for two seconds to deactivate the laser (the mode indicator flashes)

    Fn + Alt+Tab

    Switch from one program/file to another in presentation
    (similar to pressing Alt-Tab in PowerPoint)

    Fn + Link

    Re-associates ID link with receiver.

    Fn + Left Mouse Key

    Turn the screen black

    Fn + Right Mouse Key

    Turn the screen white

    Note: Idling over 30 minutes, the laser key will be de-activated automatically.

    Additional Information

    Specifications

    System

    Frequency range: 2400~2483MHz
    Remote range: Approx. 100 feet (30 meters) indoors, 328 feet (100 meters) outdoors
    Operating voltage: Remote control: 2.4V~3.3V, Laser: 2.6V~3.3V
    Power: AAA batteries * 2
    Very low power consumption: Normal operation <10mA
    Laser operation < 20mA
    Sleep < 10uA
    Output power: Under 1mW

    Physical Dimensions
    Size: Tx: 130(l) x 38.2(w) x 21.2(h) mm. Rx: 68.15(l) x 18(w) x 10.3(h) mm
    Weight: Approx. Tx 60 grams (include batteries) Rx 8 grams

    Environmental Requirements
    Temperature:
    Operating: 0    ℃(32℉)~60℃(140℉)
    Non-operation: -10    ℃(14℉)~65℃(149℉    )

    Humidity(non-condensing):
    Operating: 10%~85% RH
    Non-operating: 10%~95% RH

    Laser: Semiconductor laser(λ= 650 nm), emission duration: continuous

    Laser output power: Max.0.95 mW



    WARNING! RISK OF INJURY!

    Laser beam can cause permanent damage to eyes. Do not look into the laser beam or shine the laser beam into your eyes, other peoples� eyes, or pet�s eyes. Keep this device away from Children. This is a working tool, not a toy or entertainment device. It should only be used by adults.
